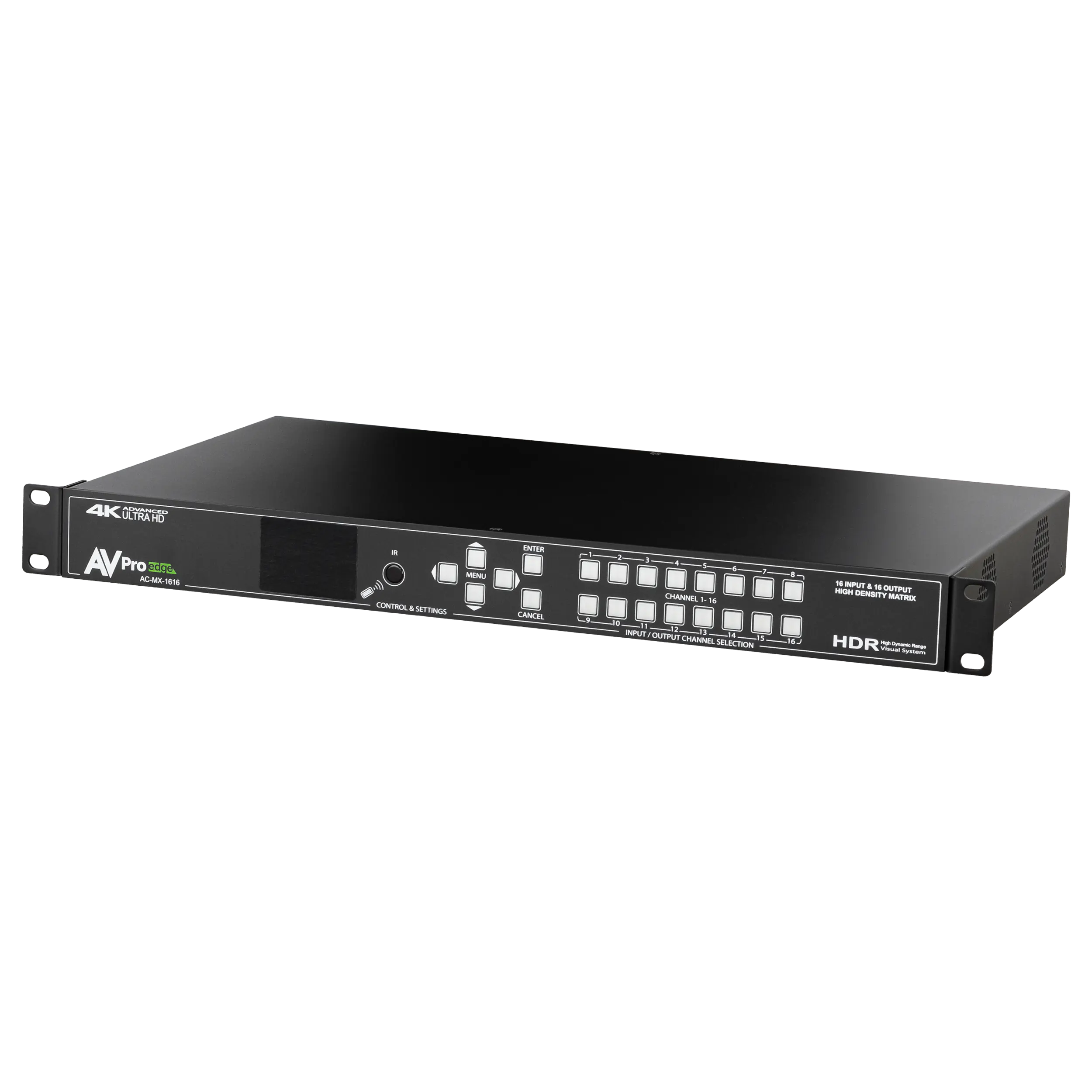

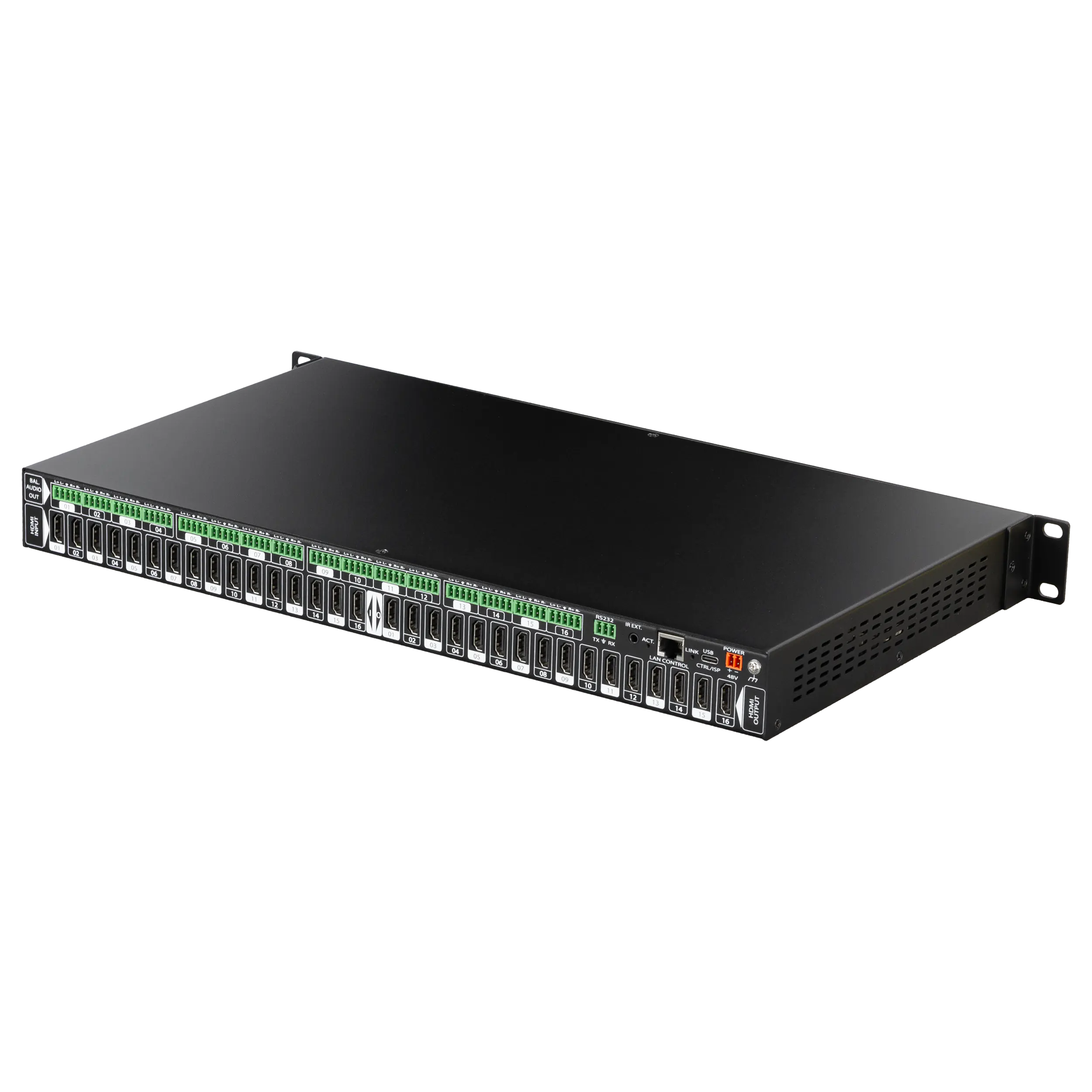

AVPro Edge 18Gbps 16x16 HDMI Matrix Switch 4K HDR

The AVPro Edge AC-MX-1616 is a high-bandwidth 1RU HDMI matrix designed for demanding professional installations. It supports full HDMI 2.0a/b specifications, including 4K 60Hz 4:4:4 and comprehensive HDR formats like HDR10, HDR10+, and Dolby Vision. Featuring fast switching speeds of under 3 seconds, this unit includes an integrated OLED front panel for effortless management and setup. The high-density design saves valuable rack space while providing 16 analog audio de-embedding outputs. Built-in test patterns allow for easy infrastructure verification, and advanced EDID management ensures reliable, high-quality signal distribution across your entire system. This matrix is built to handle complex interoperability between sources and displays, providing a robust solution for large-scale AV environments.

Bandwidth	18Gbps
Video Resolution	Up to 4K 60Hz 4:4:4
HDR Support	HDR10, HDR10+, Dolby Vision, HLG
Rack Size	1U
Audio Extraction	16 analog 2 Channel outputs
Control Ports	LAN, RS232, IR, Micro USB
Power Consumption	92 Watts Max
Operating Temperature	23 to 125°F
