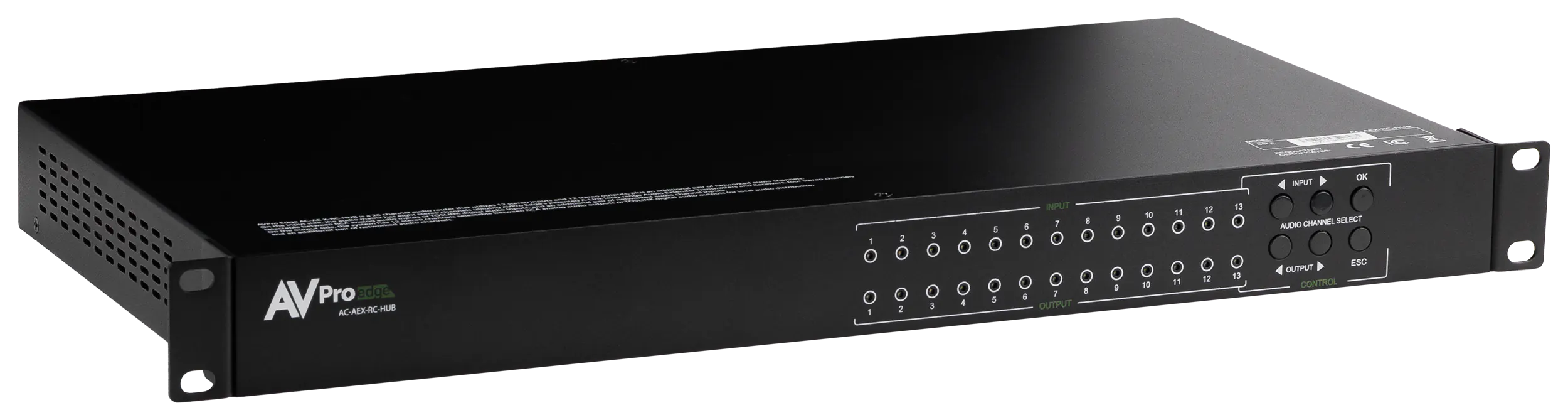

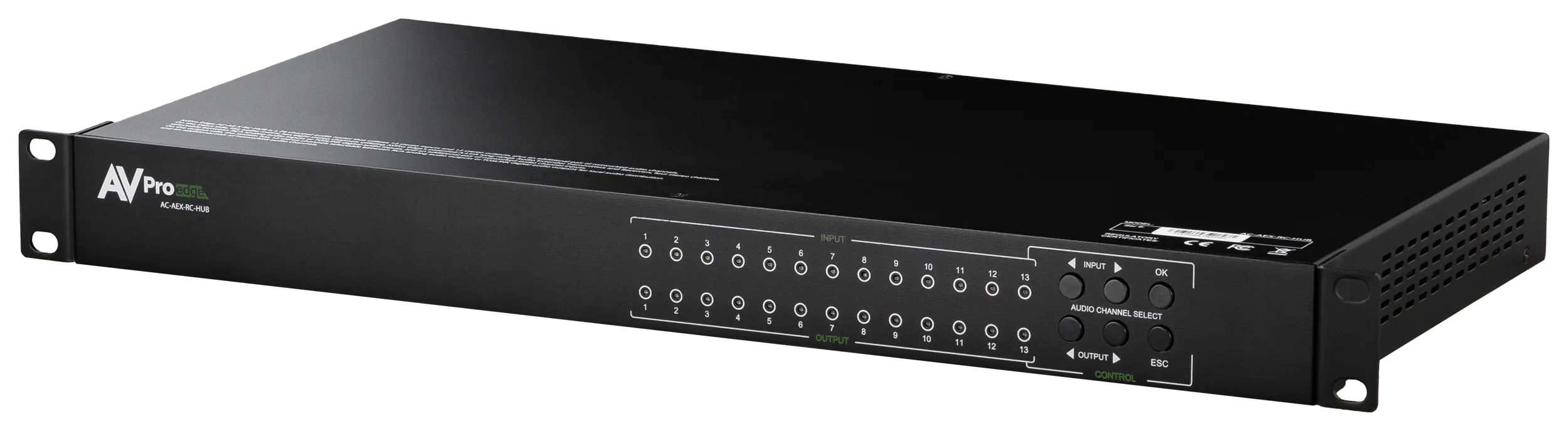

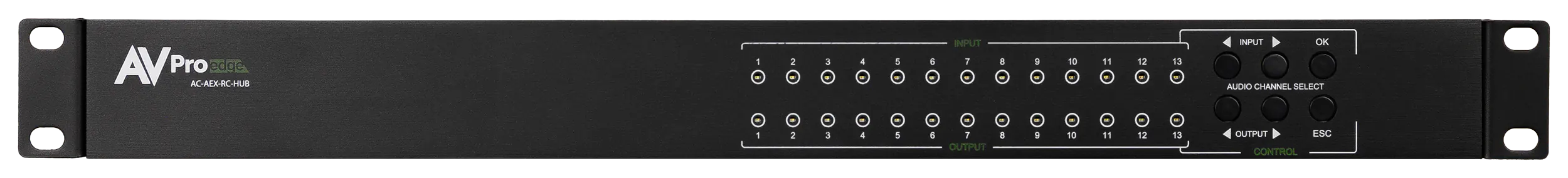

AVPro Edge AC-AEX-RC-HUB 12x12 Audio-Only Matrix Switching Aggregation Hub

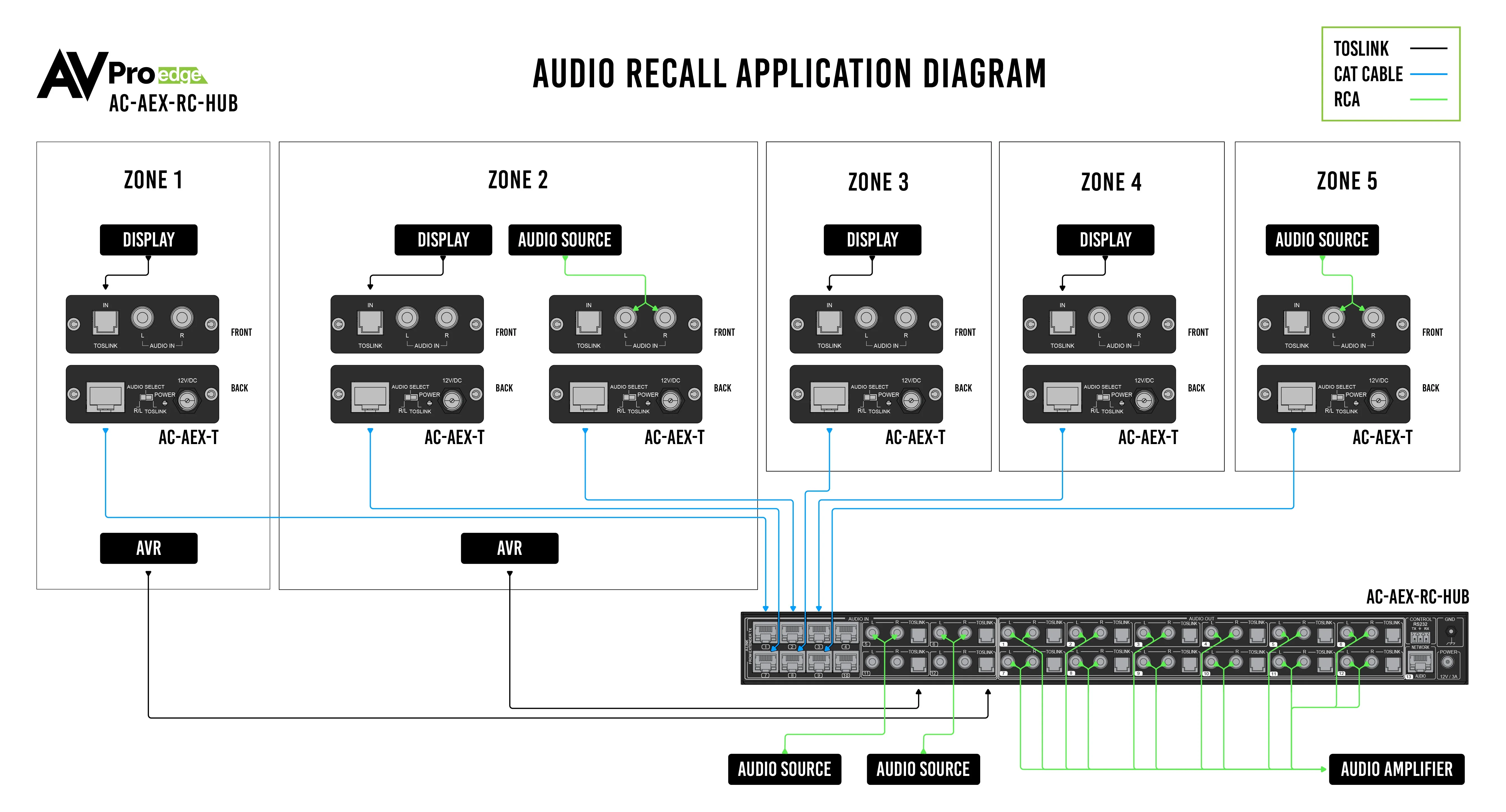

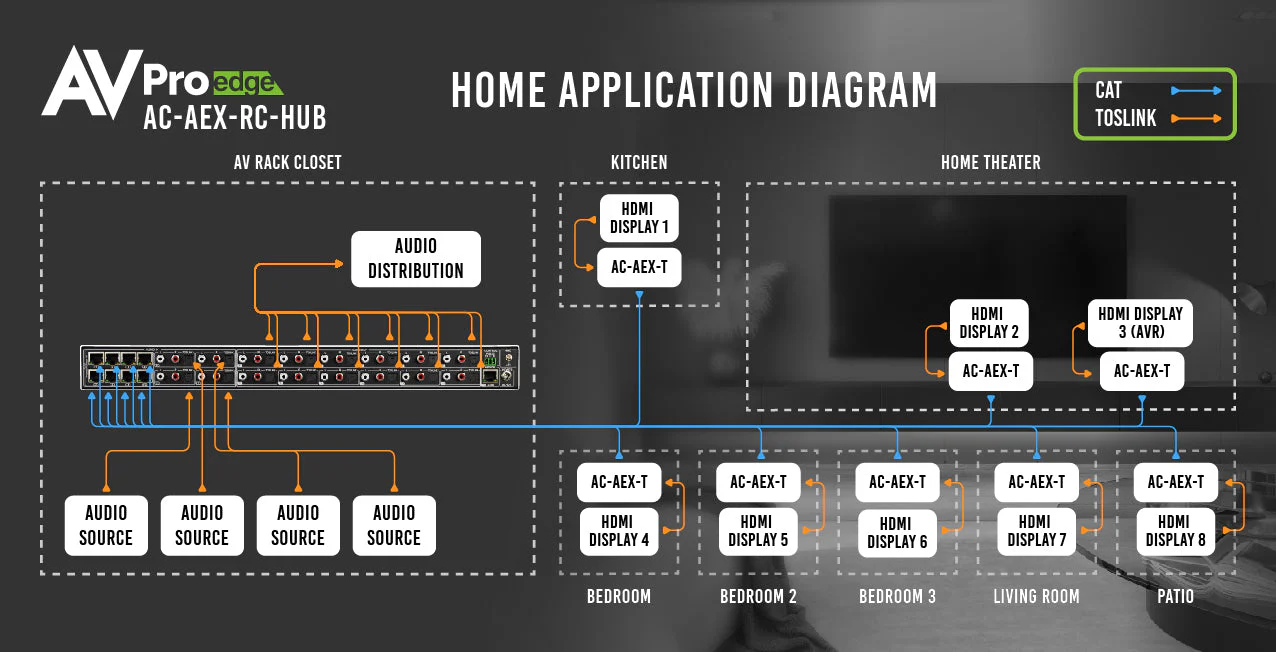

The AVPro Edge AC-AEX-RC-HUB is a powerful 12x12 audio-only matrix switching hub designed to expand audio capabilities in professional AV distribution systems. It supports 12 digital Toslink and 12 analog RCA stereo outputs, featuring simultaneous output for both formats. The hub includes eight inputs designed for Power over Cable (PoC) technology, allowing for remote audio retrieval from sources located up to 130 meters away using shielded twisted pair cabling. With advanced features such as 7 onboard pre-set EQ curves, output volume control, and Left/Right balance adjustments, it provides precise audio tailoring. This unit is an ideal solution for expanding audio outputs from video matrices, such as the AVPro Edge Axion series, to additional zones, making high-quality audio available in areas where video distribution is impractical.

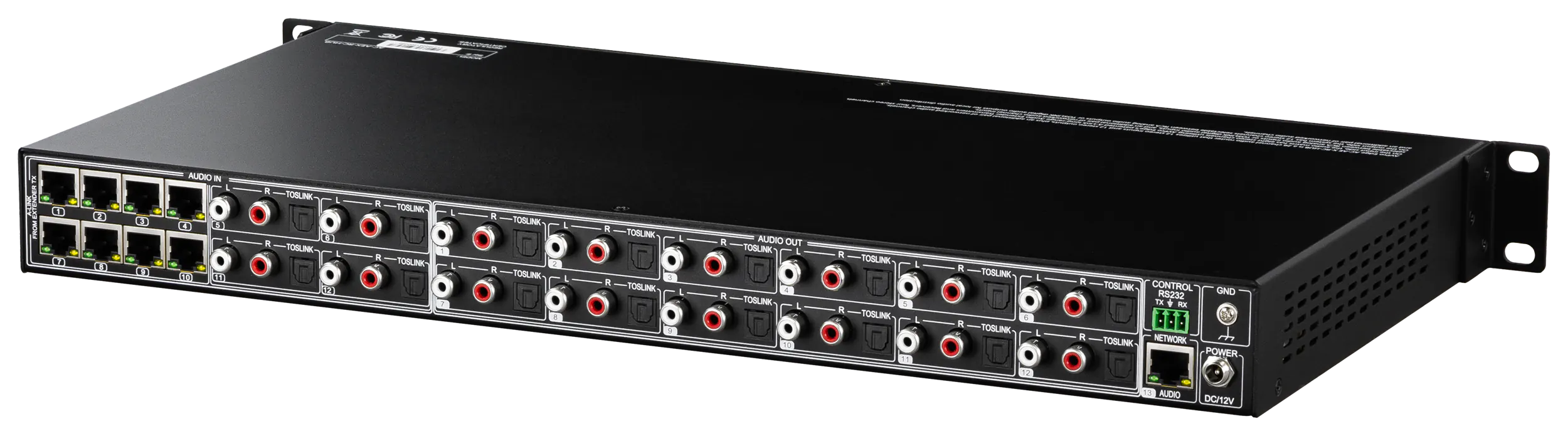

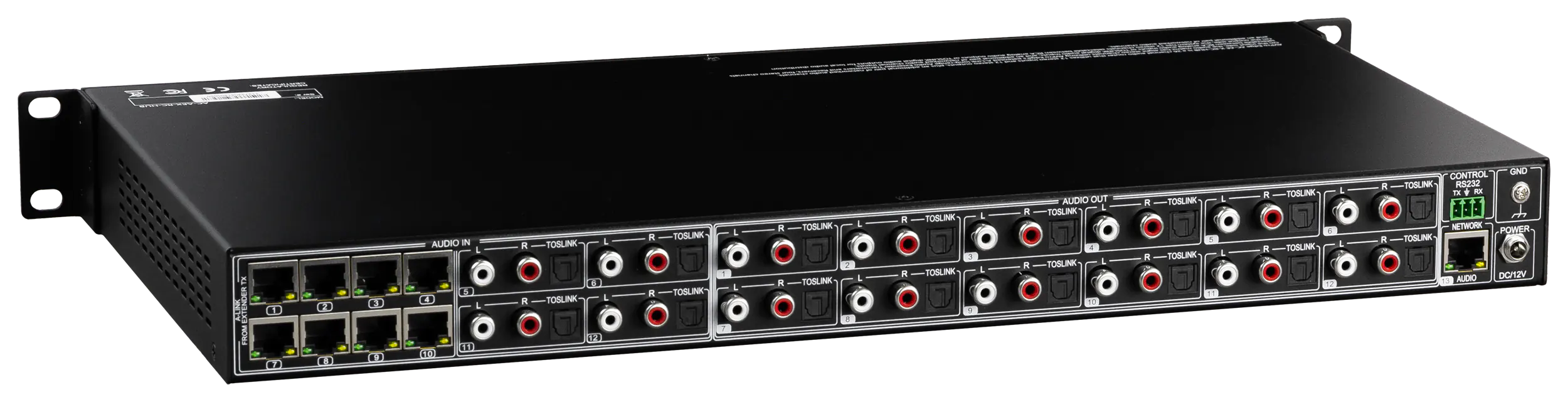

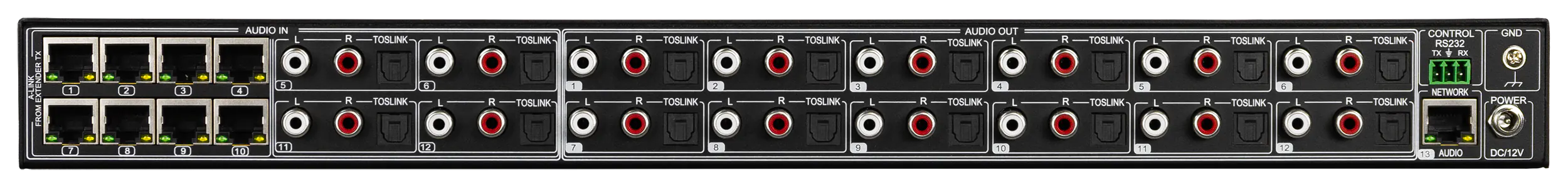

Audio Inputs	8 AEX (PoC), 4 RCA, 4 Digital (TOSLINK)
Audio Outputs	12 RCA, 12 Digital (TOSLINK)
Analog Input Voltage	1Vrms, 2.3 Vp-p
Analog Output Voltage	1Vrms, 2.828 Vp-p
Digital Audio	2 Channel PCM (32, 44.1, 48, 88.2, 96, 176, 192 kHz)
Latency	30ms
Control Interfaces	RS-232, IP/LAN
Power Consumption	3 watts max

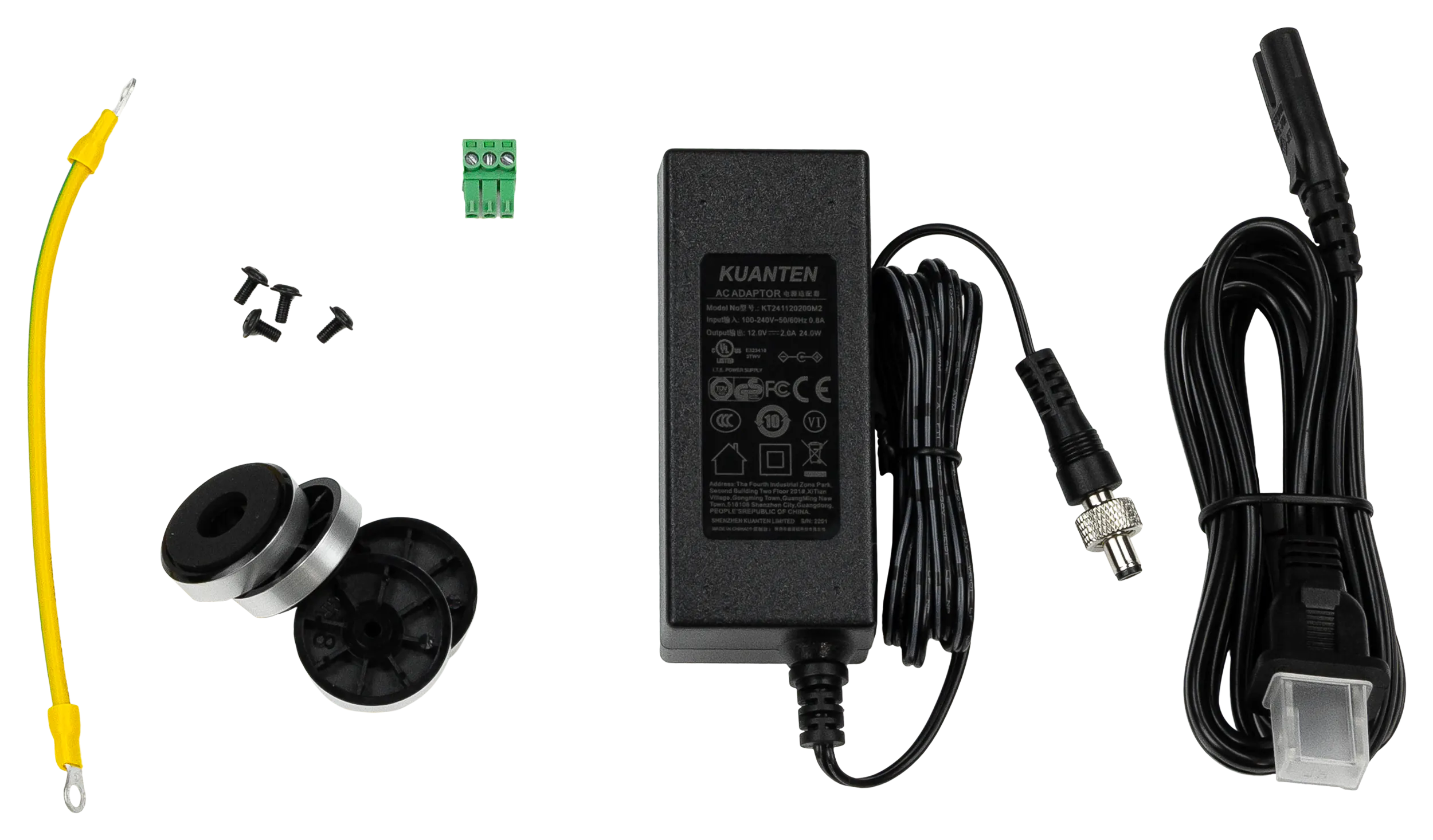

Power Supply	DC 12V 2A
