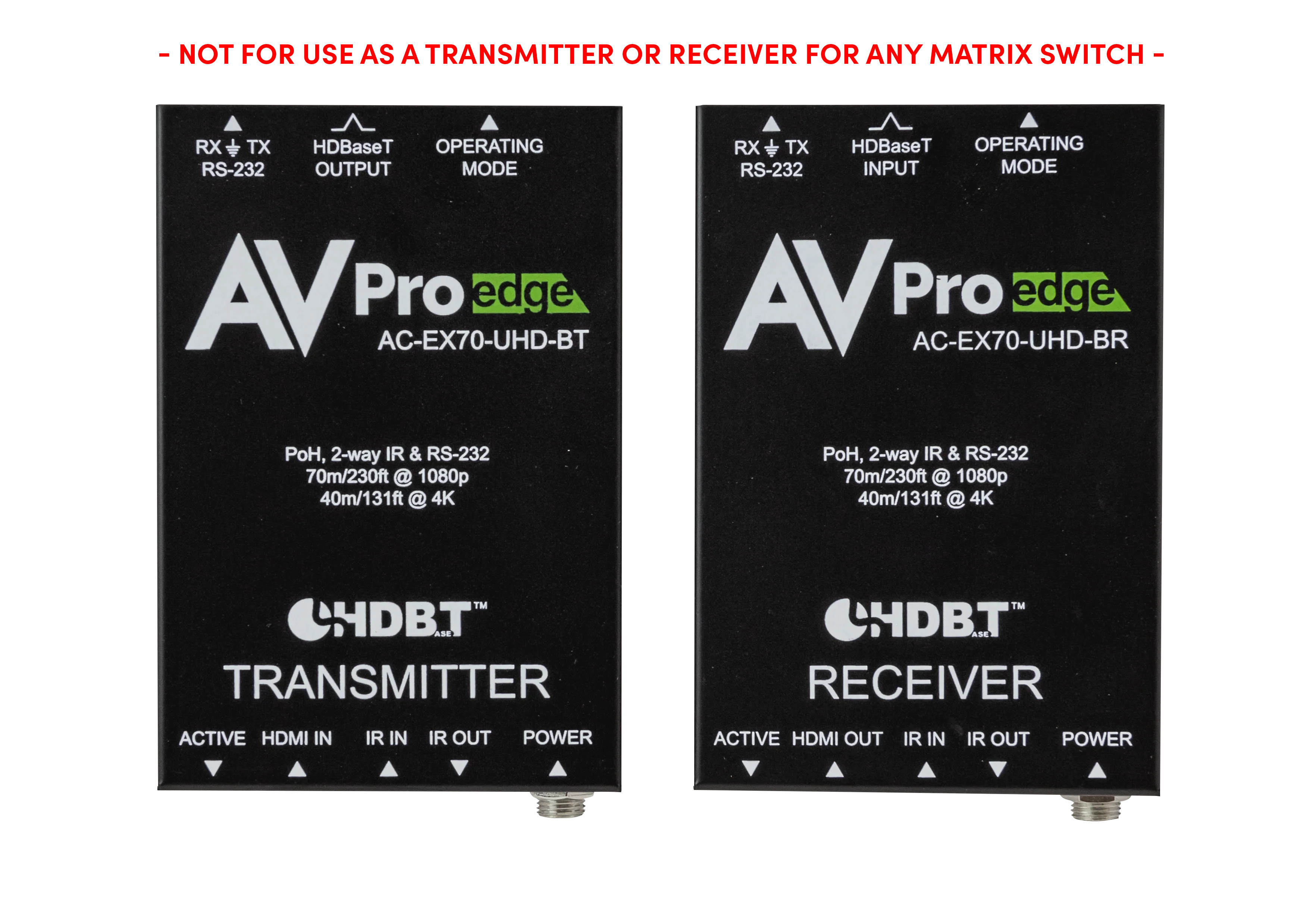

AVPro Edge AC-EX70-UHD-BKT 70m HDBaseT Extender Kit

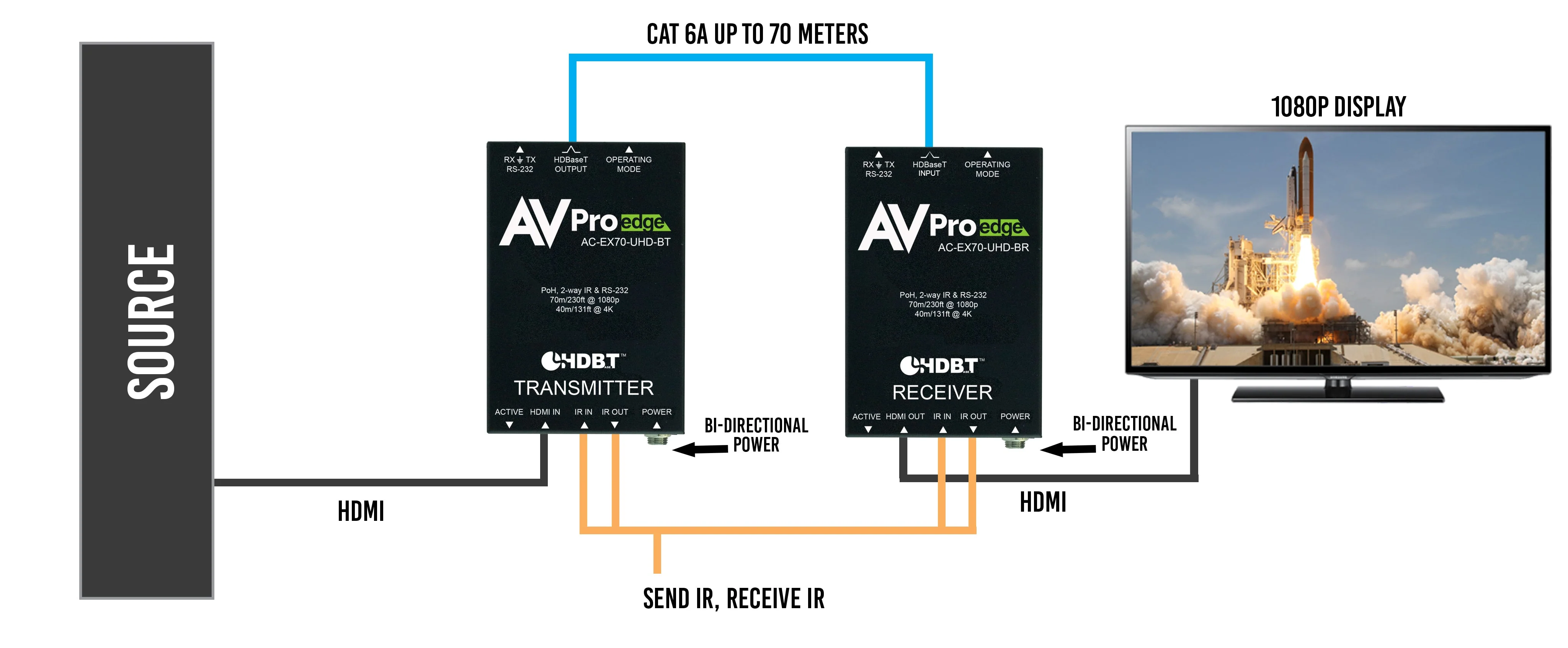

The AVPro Edge AC-EX70-UHD-BKT is a professional-grade HDBaseT extender kit engineered to transmit 4K HDMI signals over standard category cabling. This kit supports UHD 4K resolution at distances up to 40 meters and full HD 1080p resolution up to 70 meters. Equipped with bi-directional IR and RS-232 control, it allows for seamless integration into complex AV control systems. The system utilizes Power over Cable (PoC) technology, enabling the transmitter to power the receiver, which simplifies installation in locations where power outlets are not readily available. Designed for reliability and ease of use, this matched kit supports high-bandwidth video and advanced audio formats, including Dolby Atmos and DTS-X, providing a robust solution for diverse installation requirements.

Max Resolution	4K 30Hz 4:4:4
4K Transmission Distance	40 meters (131 feet)
1080p Transmission Distance	70 meters (230 feet)
Control	Bi-directional IR and RS-232
Power	PoC (Power over Cable)
Bandwidth	10.2 Gbps
HDCP Support	HDCP 2.3 and earlier
Dimensions	4.14 x 2.82 x 0.98 inches
Weight	0.35 lbs
