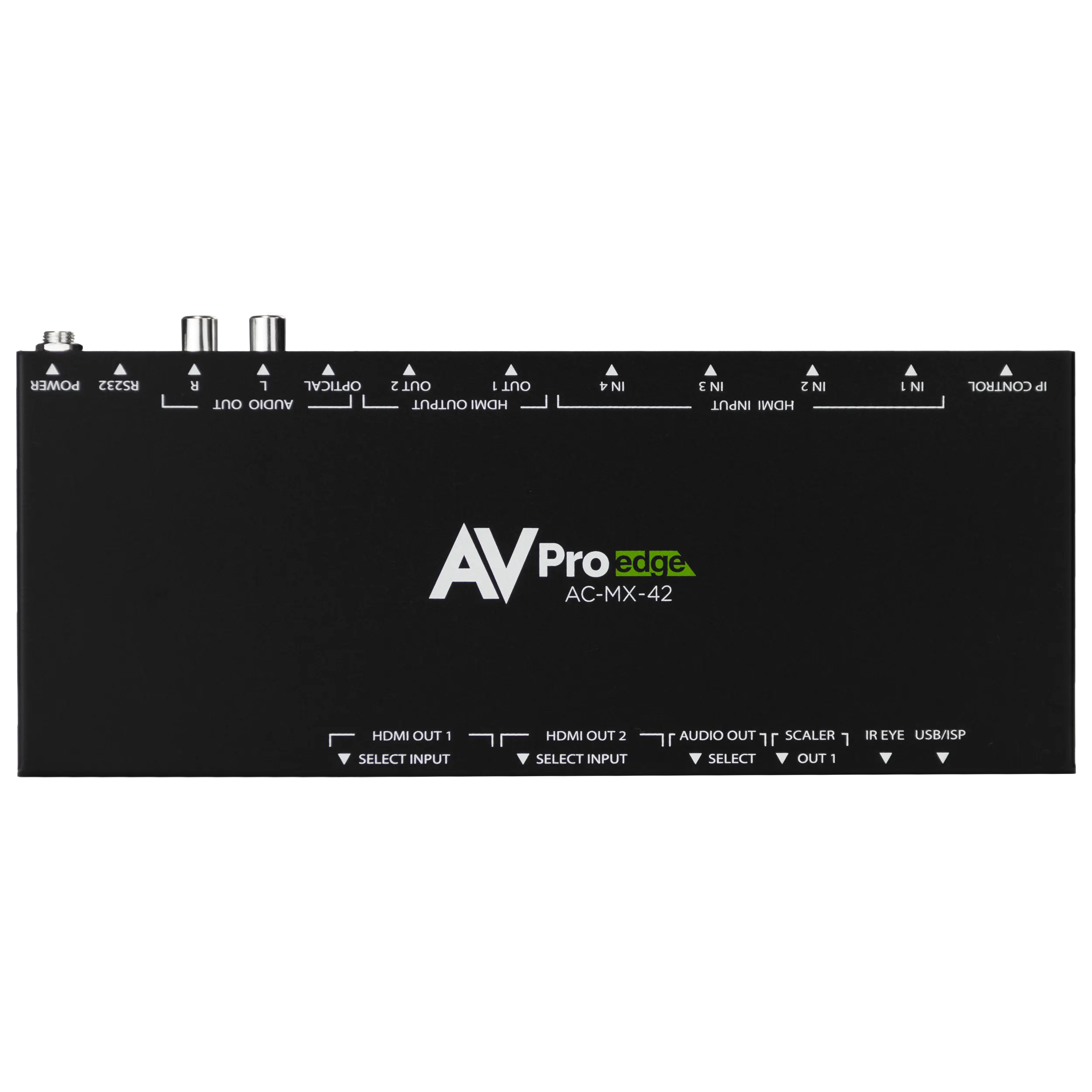

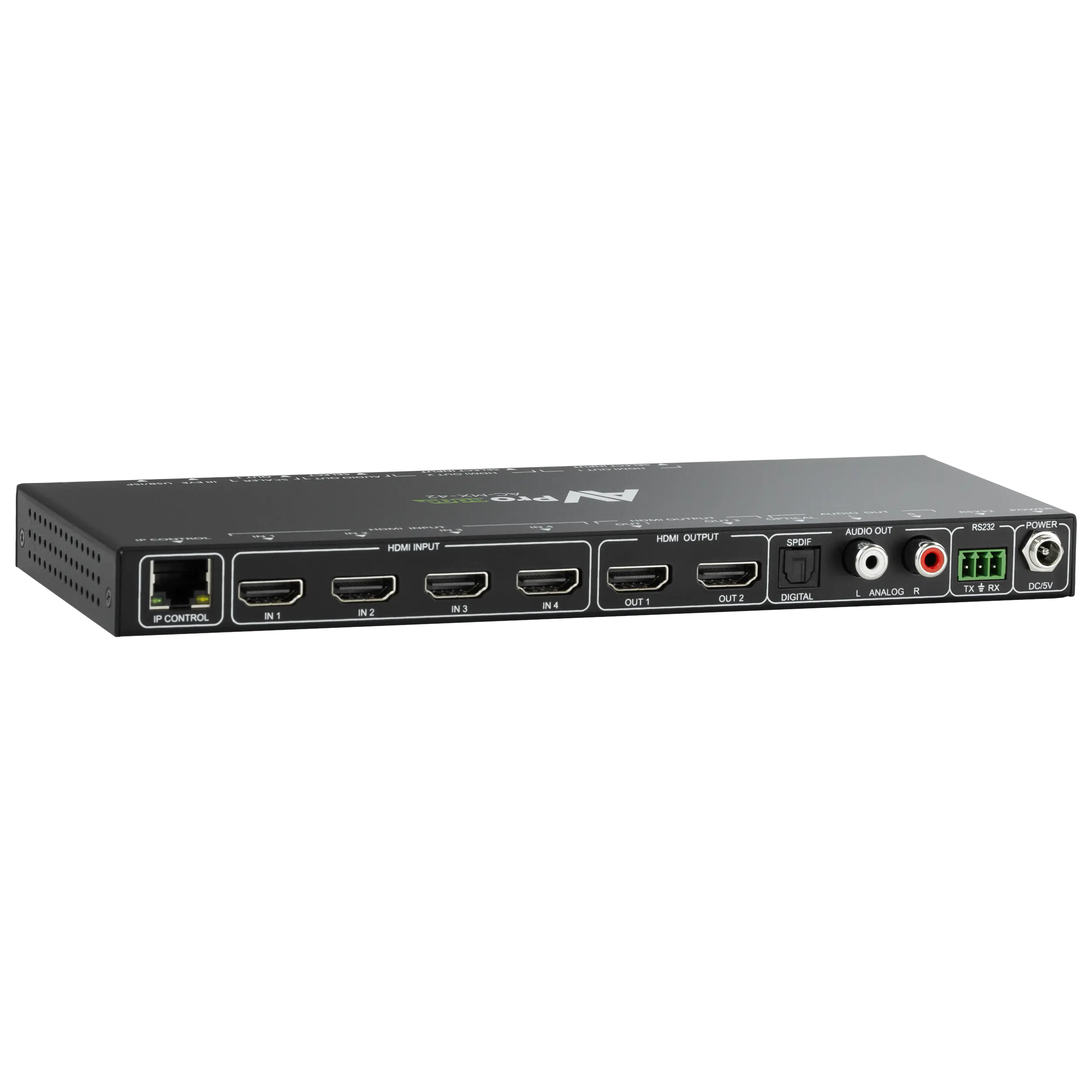

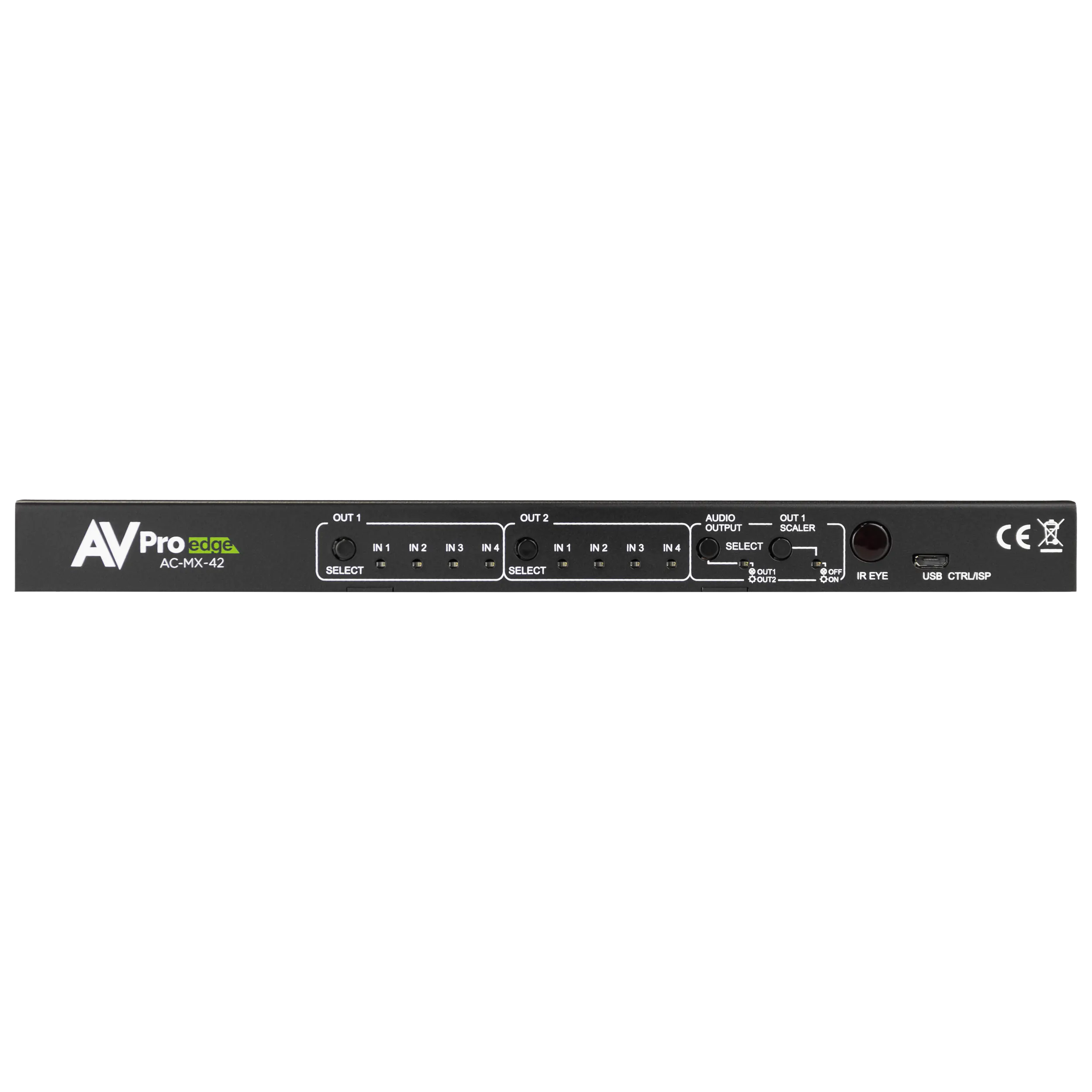

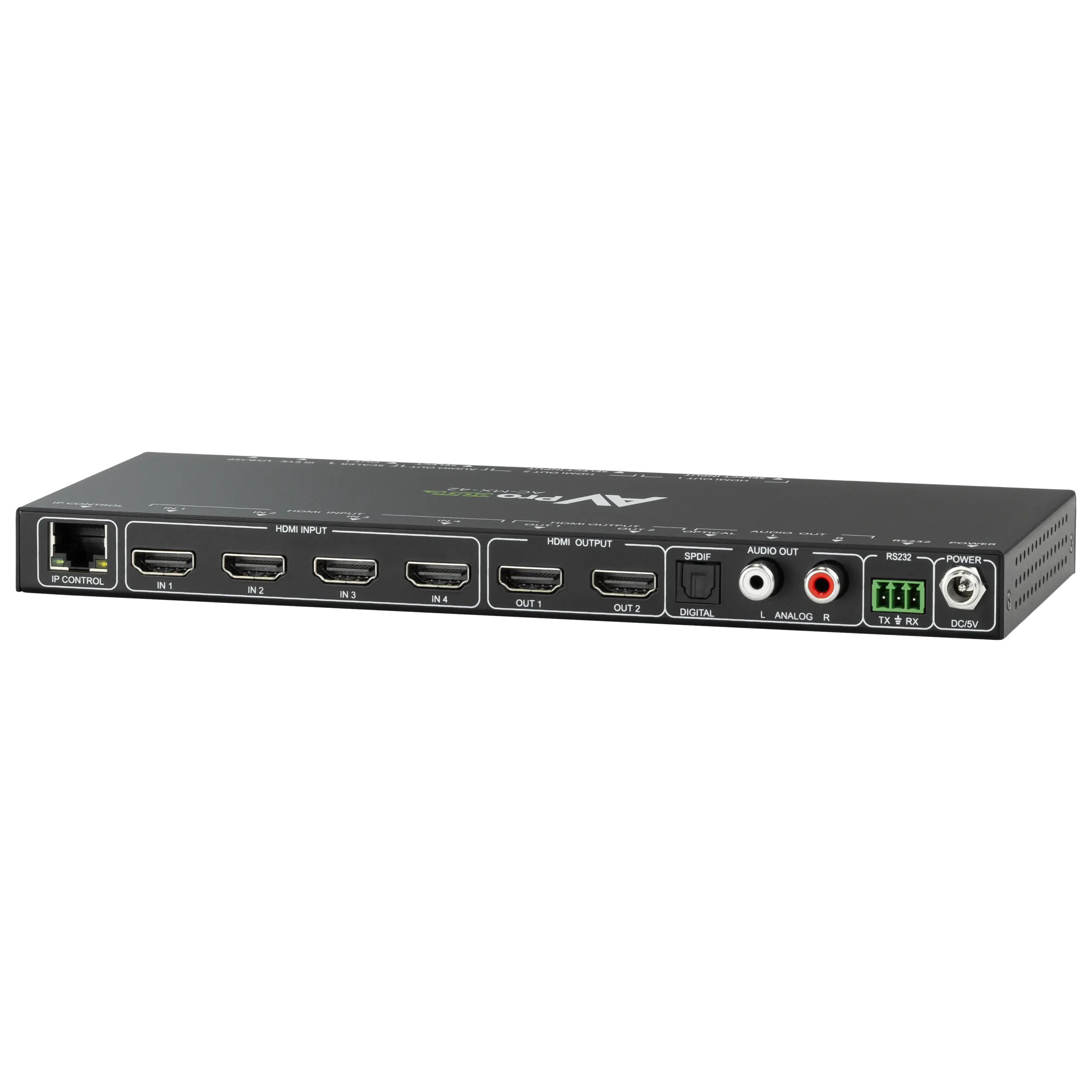

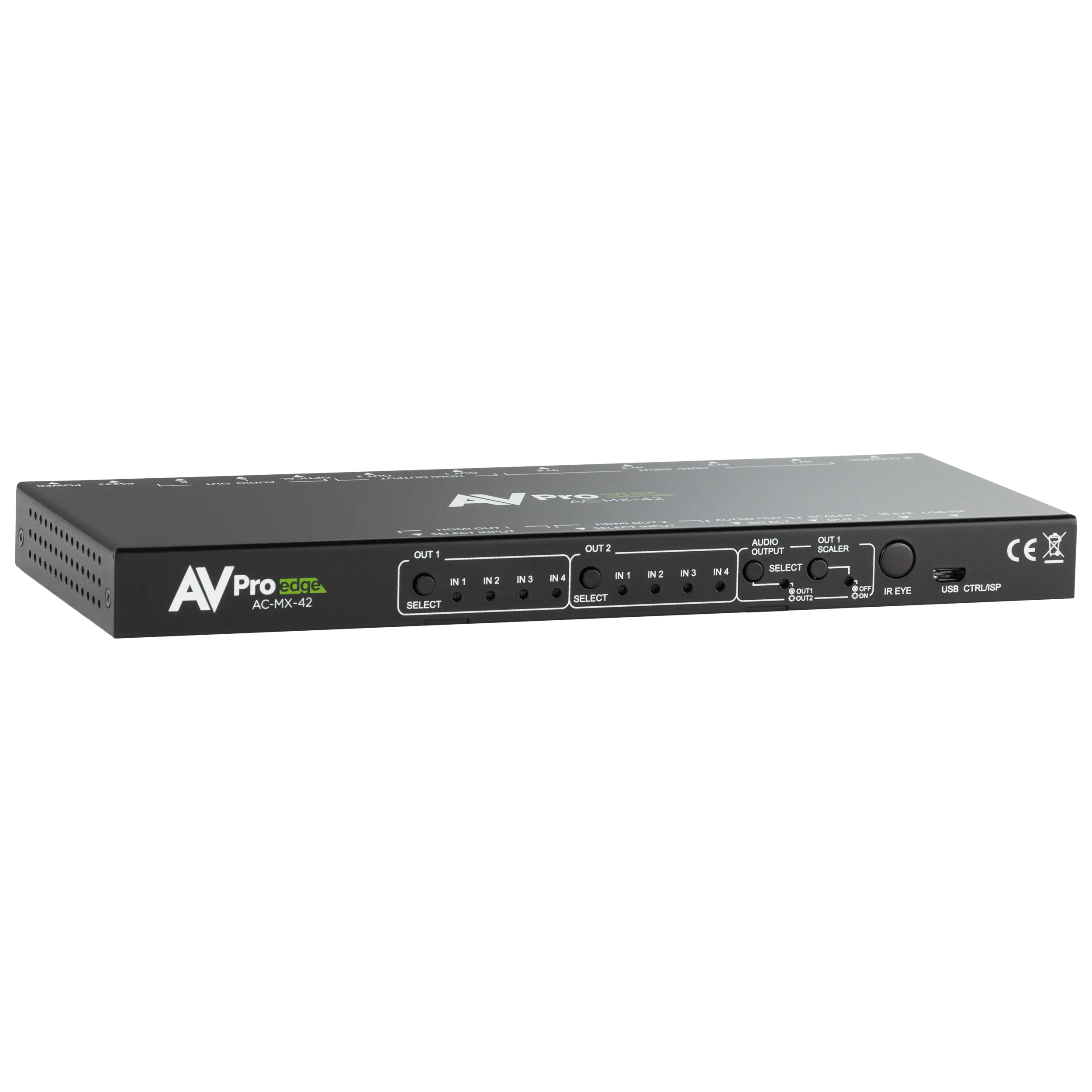

AVPro Edge AC-MX-42 18Gbps 4x2 Auto Switching HDMI Matrix Switcher

The AVPro Edge AC-MX-42 is an 18Gbps 4x2 HDMI matrix switcher designed for high-bandwidth professional audio-visual systems. This advanced switcher supports 4K60 4:4:4 video, full HDR compatibility, and provides robust AVR bypass capabilities, ensuring uncompressed video signals reach primary displays while managing complex audio streams. With integrated 4K to 1080p downscaling on output 1, the device allows for seamless integration in mixed-resolution environments. It features sophisticated EDID management with 29 onboard profiles and dual audio de-embedding, providing reliable performance and flexible audio extraction for 7-channel LPCM, Dolby Digital, and DTS formats. This compact, high-performance solution is ideal for residential or commercial installations requiring stable signal integrity.

Video Resolution	Up to 4K 60Hz 4:4:4
Bandwidth	18 Gbps
HDR Formats	HDR10, HDR10+, Dolby Vision, HLG
Audio Formats	PCM 2.0, LPCM 7.1, Dolby Atmos, DTS-X
HDCP Compliance	HDCP 2.3
Dimensions	0.9 x 3.7 x 9.17 inch
Weight	0.9 kg
Operating Temperature	23°F to 125°F
Power Consumption	7 Watts Max
