AVPro Edge AC-SC-1X 8K HDMI Downscaler EDID Manager 40Gbps

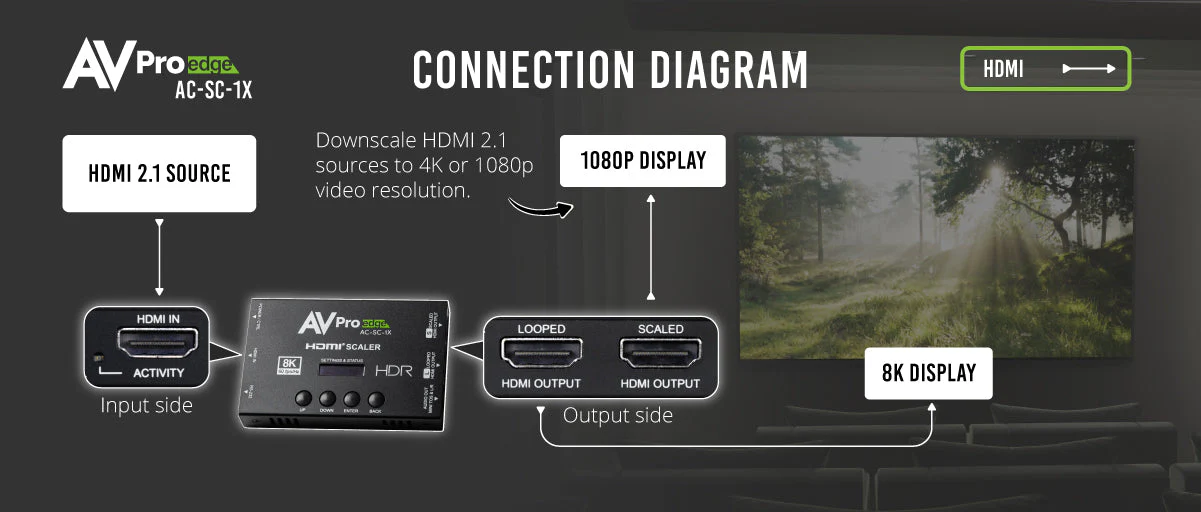

The AVPro Edge AC-SC-1X acts as a versatile bridge for high-bandwidth HDMI signals, supporting up to 40Gbps. This device enables 8K to 4K or 1080p downscaling and features robust EDID management with 16 settings, including User Copy for display compatibility. It supports essential AV technologies like HDR, Dolby Vision, VRR, and ALLM for high-performance gaming and media setups. Audio extraction is simplified through Digital Toslink or HDMI, offering flexibility for complex system configurations. The ultra-low-profile, compact design is ideal for rack mounting or concealing behind displays, ensuring a clean installation.

Bandwidth	40 Gbps (FRL 5)
Video Resolutions	Up to 8K 60Hz 4:2:0, 8K 30Hz 4:4:4, 4K 120Hz
HDR Formats	HDR10, HDR10+, Dolby Vision, HLG
Audio Formats (HDMI)	PCM 2.0 Ch, LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS-X, Dolby Atmos
Audio Formats (Extracted)	LPCM up to 5.1 96KHz 24 Bit, Dolby Digital 5.1, DTS HiRes Audio, PCM 2 CH
Operating Temperature	-5 to 51°C (23 to 125°F)
Power Consumption	2.5 Watts max
Dimensions (Unit)	2.55 x 3.94 x 0.63 inches
Weight (Unit)	0.32 lbs
