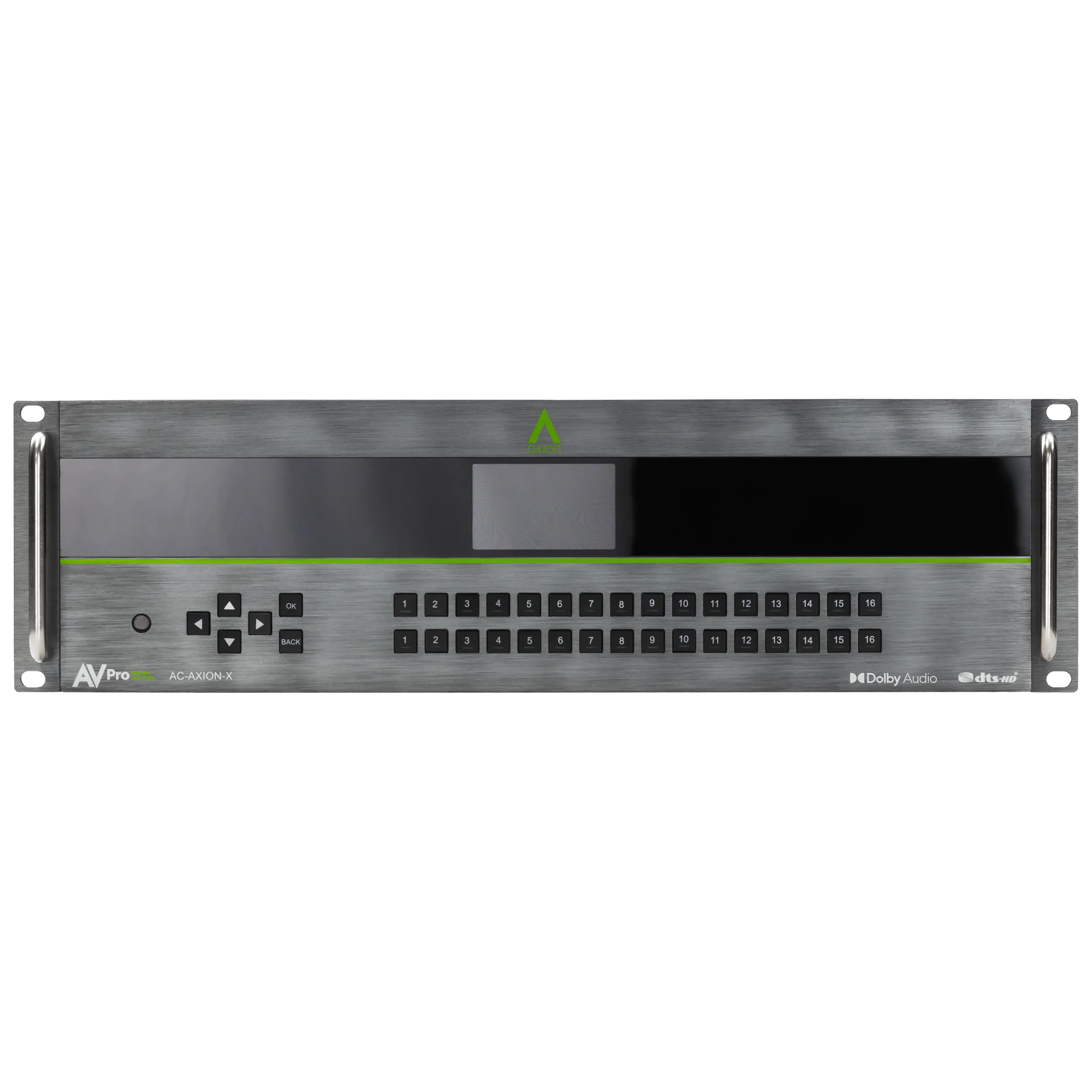

AVPro Edge AXION X Modular Matrix Switcher Chassis 3U 4K60

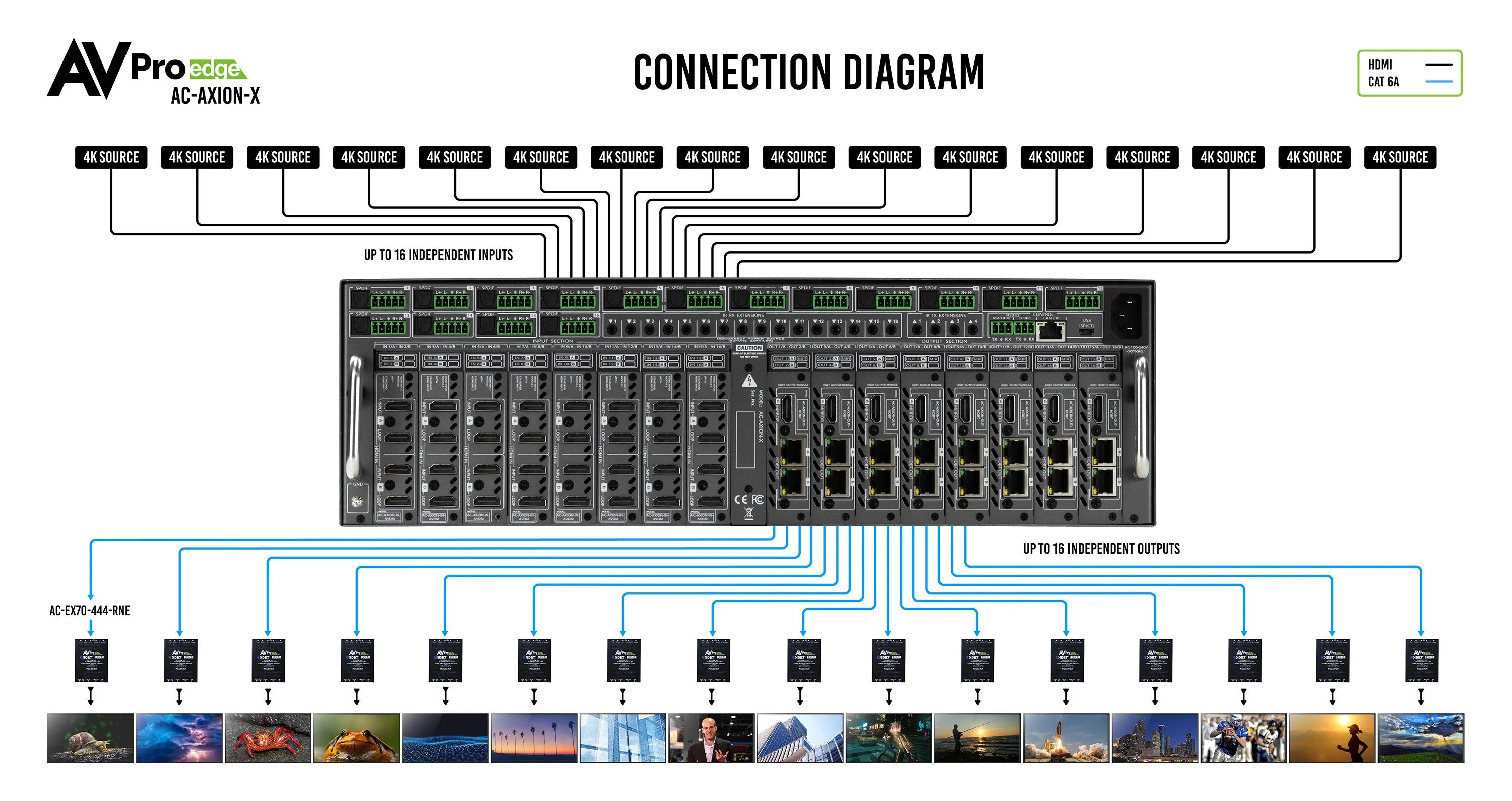

The AXION X Matrix Chassis stands as the pinnacle of 4K signal distribution, offering a modular, chassis-based architecture designed for high-end professional AV installations. This powerhouse supports 18Gbps bandwidth, enabling full 4K60 4:4:4 and HDR performance, including HDR10, Dolby Vision, and HLG. With customizable input and output card configurations, integrators can easily tailor the system to support up to 16 inputs and 16 outputs. The built-in Mission Critical Scaling (MCS) technology ensures seamless video compatibility across diverse display types. Advanced audio features include Dolby Atmos and DTS-X downmixing, providing flexible routing and de-embedding options for any home theater or commercial environment. Designed for reliability, the system features comprehensive EDID management and a user-friendly interface for real-time signal health monitoring and diagnostics.

Rack Height	3U
Bandwidth	18 Gbps
Supported Video	4K60 4:4:4, HDR10, HDR10+, Dolby Vision, HLG
Audio Formats	Dolby Atmos, DTS-X, LPCM 7.1, Dolby TrueHD, DTS-HD Master Audio
Power Consumption	56 Watts Max
Operating Temperature	23 to 125°F (-5 to 51°C)
HDCP Compliance	HDCP 2.3 and earlier
Control Ports	LAN, RS232, IR, Micro USB
