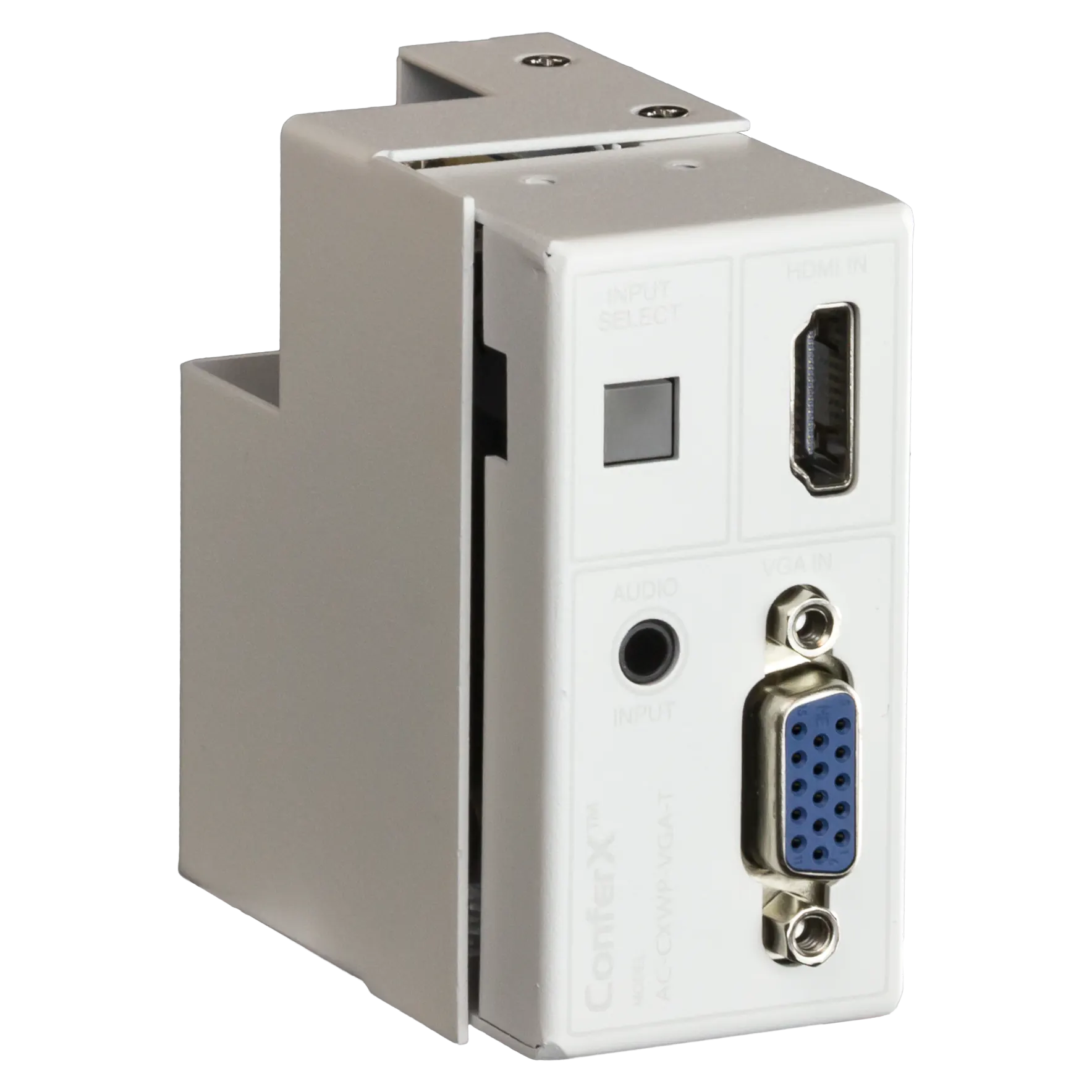

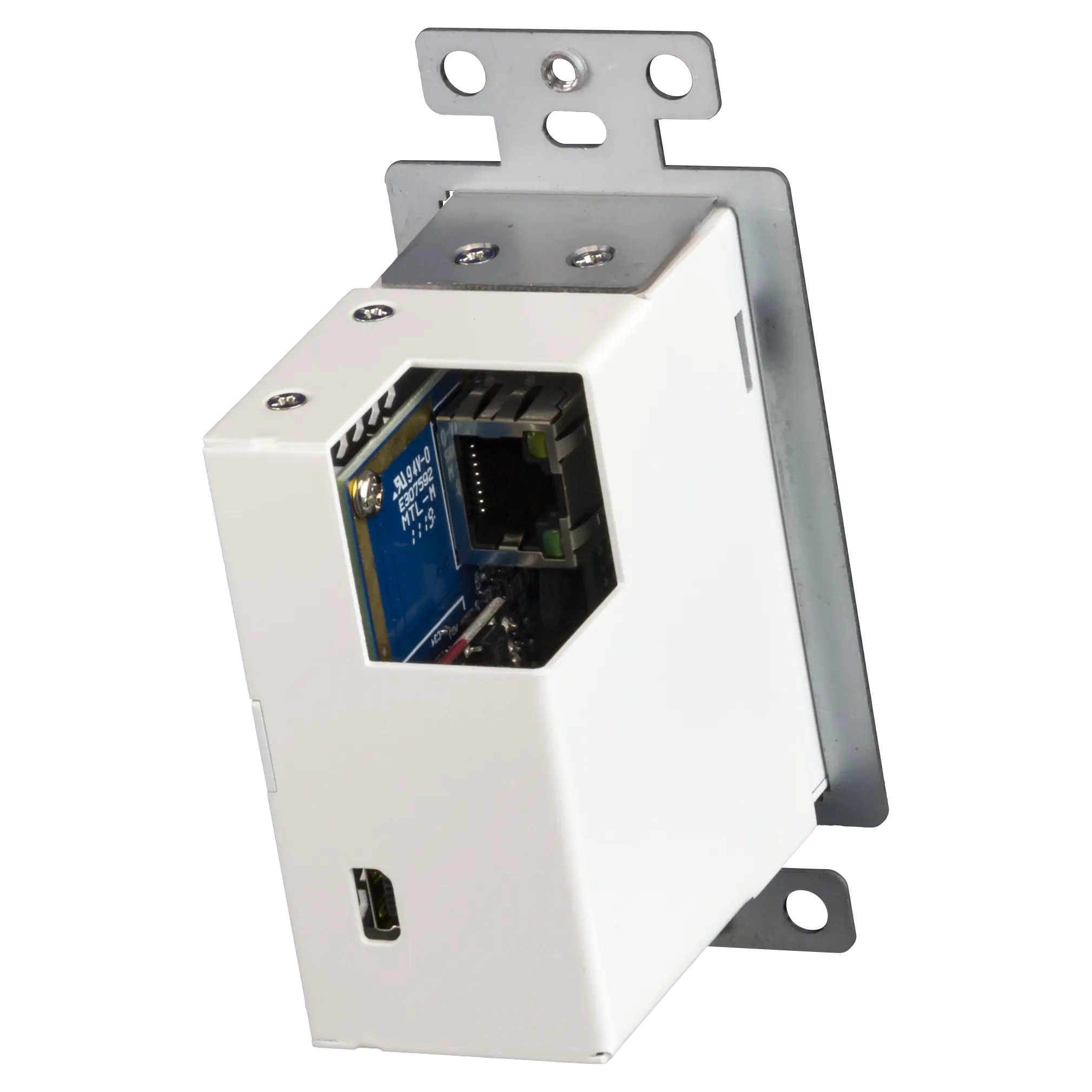

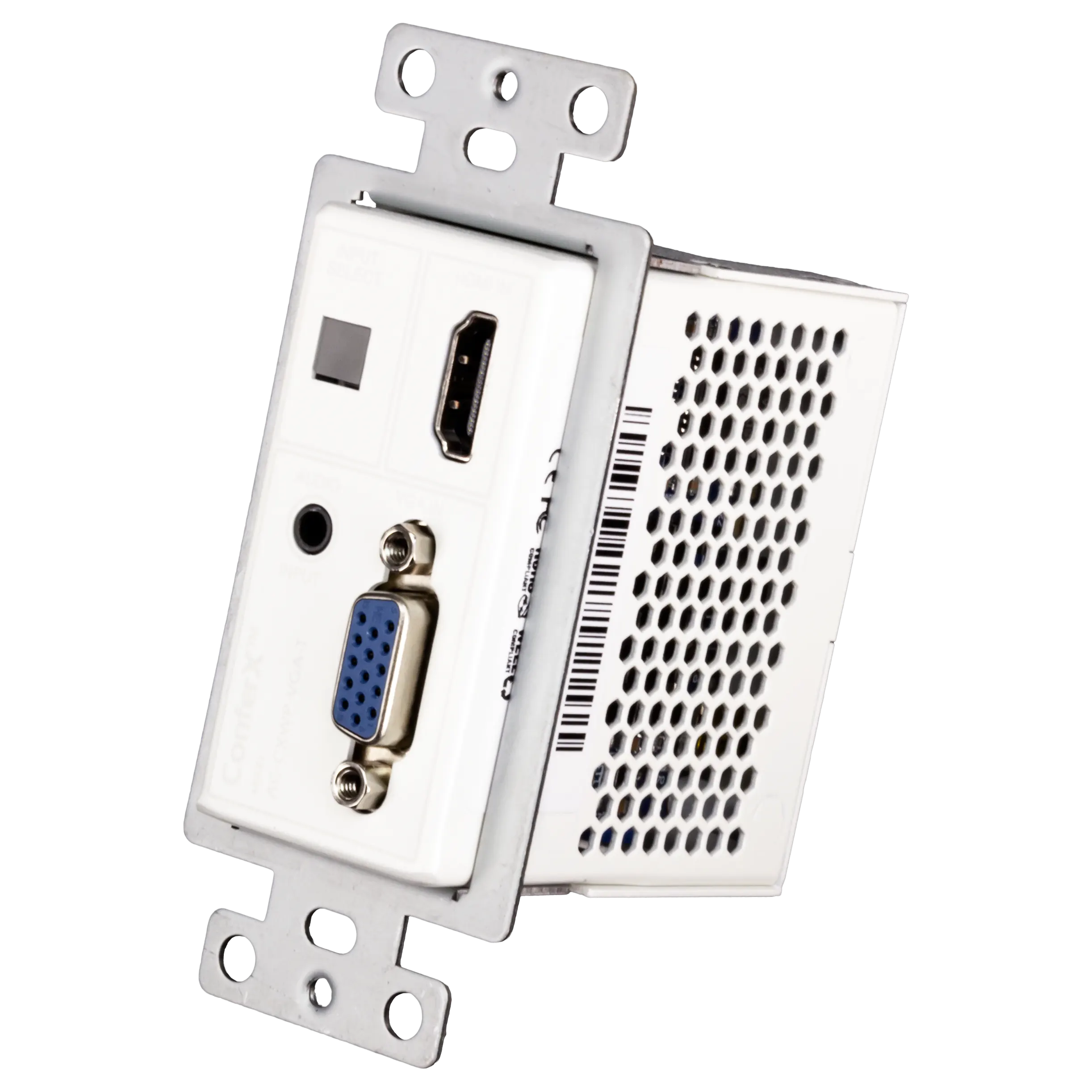

AVPro Edge ConferX VGA/HDMI HDBaseT Wall Plate Transmitter

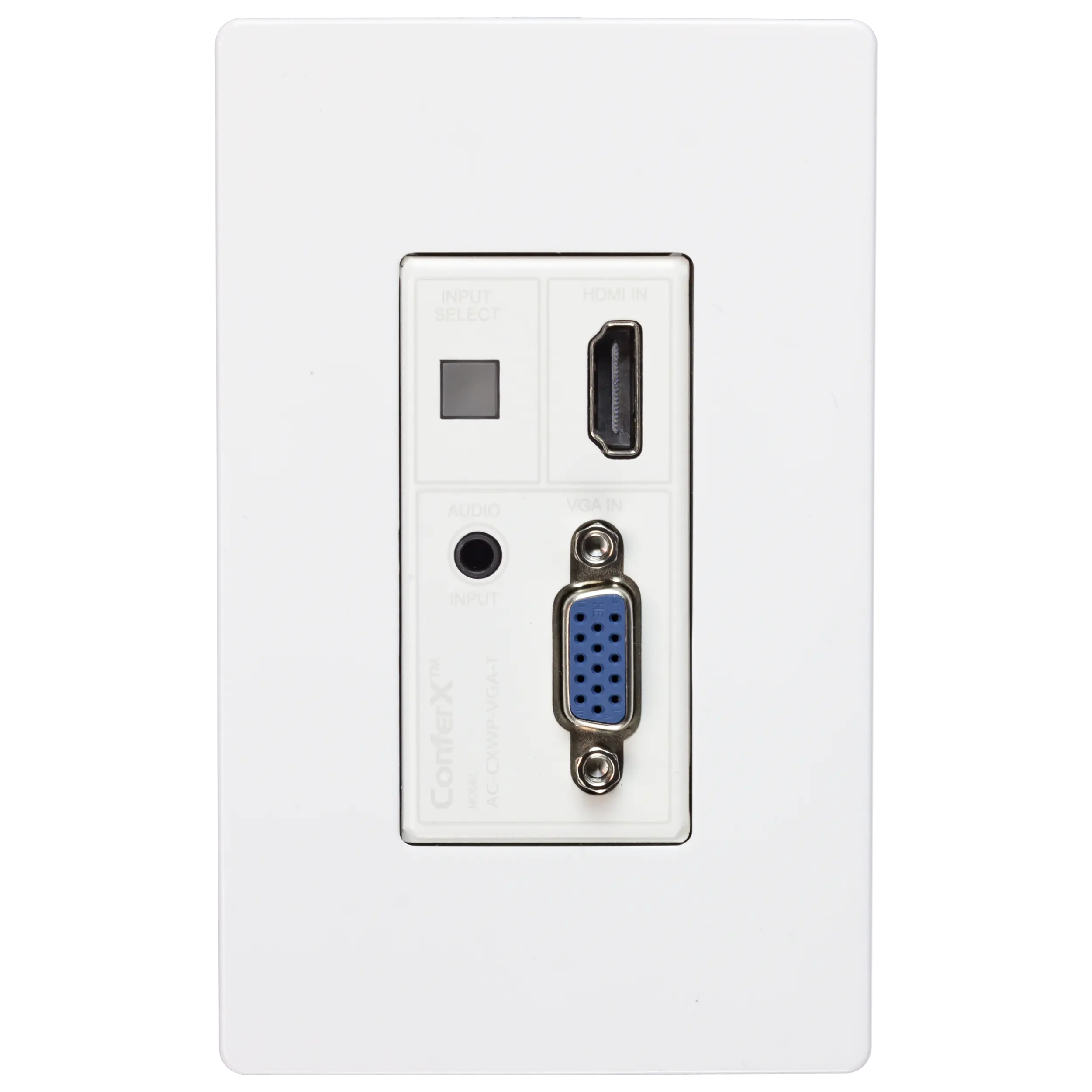

This single gang, HDBaseT wall plate transmitter is a part of the ConferX line of professional audio video products. Designed to fit any standard single gang mud ring, it offers a sleek, low-profile integration for schools, offices, and meeting rooms. The unit supports long-distance transmission, sending HDMI or VGA signals over CAT 6a cabling for up to 100 meters at 1080p and 70 meters at 4K. It features auto-sensing technology for effortless operation and is built to military-grade standards for reliable, stable connections. The system is compatible with all PC, VESA, and traditional resolutions, including 4K 60Hz 4:2:0 and HDR content. Power is delivered via ultra-stable PoE technology, eliminating the need for local power supplies in most installations. This transmitter provides a clean, professional look and seamless interoperability with various video sources.

Video Resolutions	Up to 4K 60Hz 4:2:0 & 4K 30Hz 4:4:4
VESA Resolutions	Up to 2560x2048 (QSXGA)
HDR Formats	4K 24Hz 4:2:2 12-bit, 4K 24Hz 4:2:0 10-bit
Transmission Distance (1080p)	100 meters (330 feet)
Transmission Distance (4K)	70 meters (230 feet)
Bandwidth	10.2 Gbps
HDCP Compliance	HDCP 2.2 and earlier
Input Ports	HDMI Type A, VGA

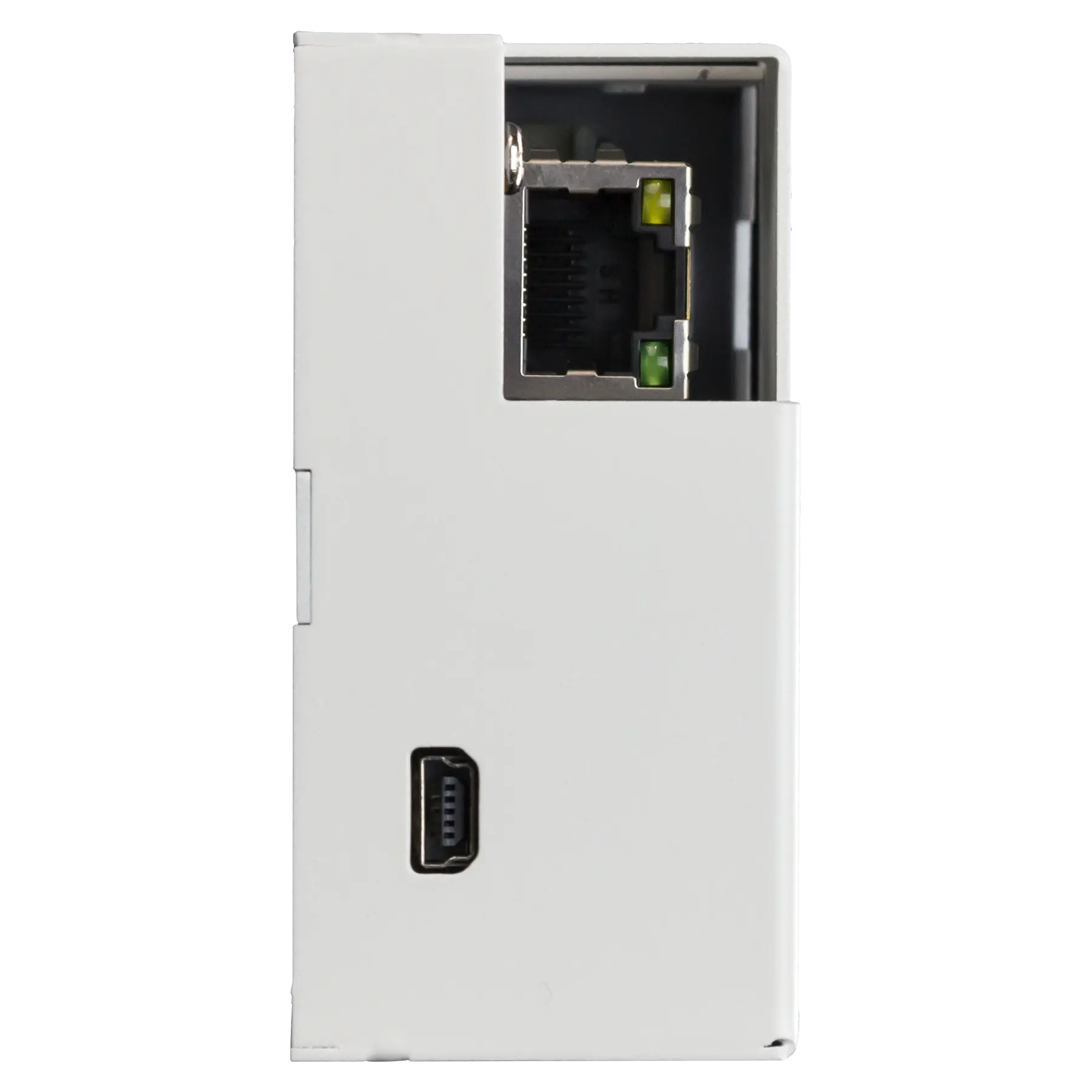

Output Port	RJ45 (HDBaseT)
Operating Temperature	23 to 125°F (-5 to 51°C)
