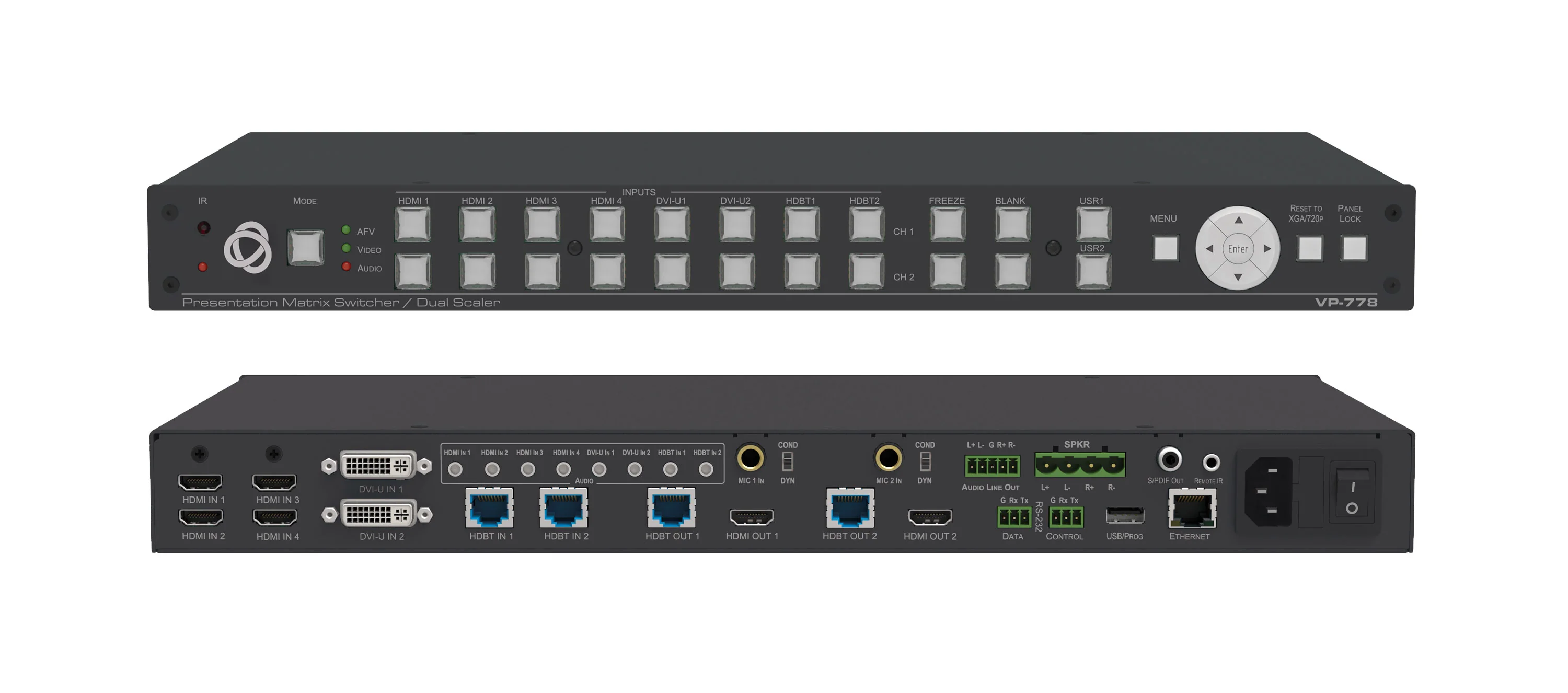

Kramer VP-778 8-Input Presentation Matrix Switcher 4K Scaling System

The Kramer VP-778 is a professional-grade presentation matrix switcher and scaler designed for demanding 4K video environments. It provides seamless switching between eight inputs, including HDMI, DVI-U, and HDBaseT, delivering 4K@30Hz output performance. Dual independent scalers allow for flexible Picture-in-Picture (PiP) configurations and simultaneous multi-output display. Advanced audio capabilities include integrated DSP, two microphone inputs, and a 2x10W power amplifier for direct speaker connection. Control is simplified through web pages, RS-232, and IR, ensuring easy integration into conference rooms, auditoriums, and staging setups. This robust unit supports HDBaseT technology, facilitating high-speed, long-distance transmission over standard cabling.

Inputs	4 HDMI, 2 DVI-U (HDMI/VGA/YUV/CV), 2 HDBaseT
Outputs	2 HDMI, 2 HDBaseT
Resolution	Up to 4K@30Hz UHD
Audio Features	Integrated DSP, 2 Mic inputs, 2x10W power amplifier
Control Options	RS-232, IR, Ethernet, Web UI
Advanced Technologies	HDBaseT, Pix Perfect Scaling, K-IIT XL PiP
Compliance	HDCP Compliant
Mounting	19-inch rack mountable
