VigilLink M802ex 2-Channel 4K60 HDMI Edge Blending Processor with Mapping

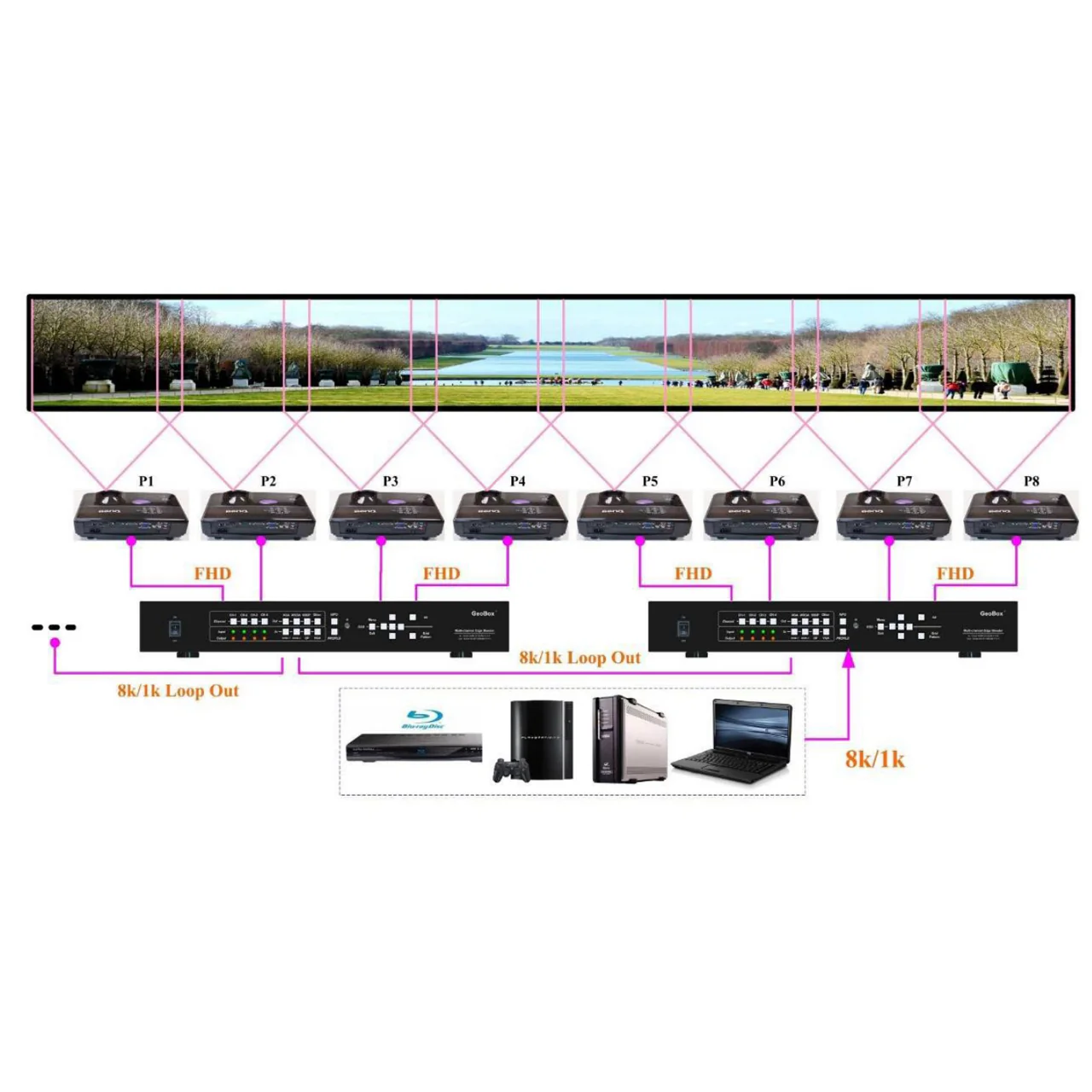

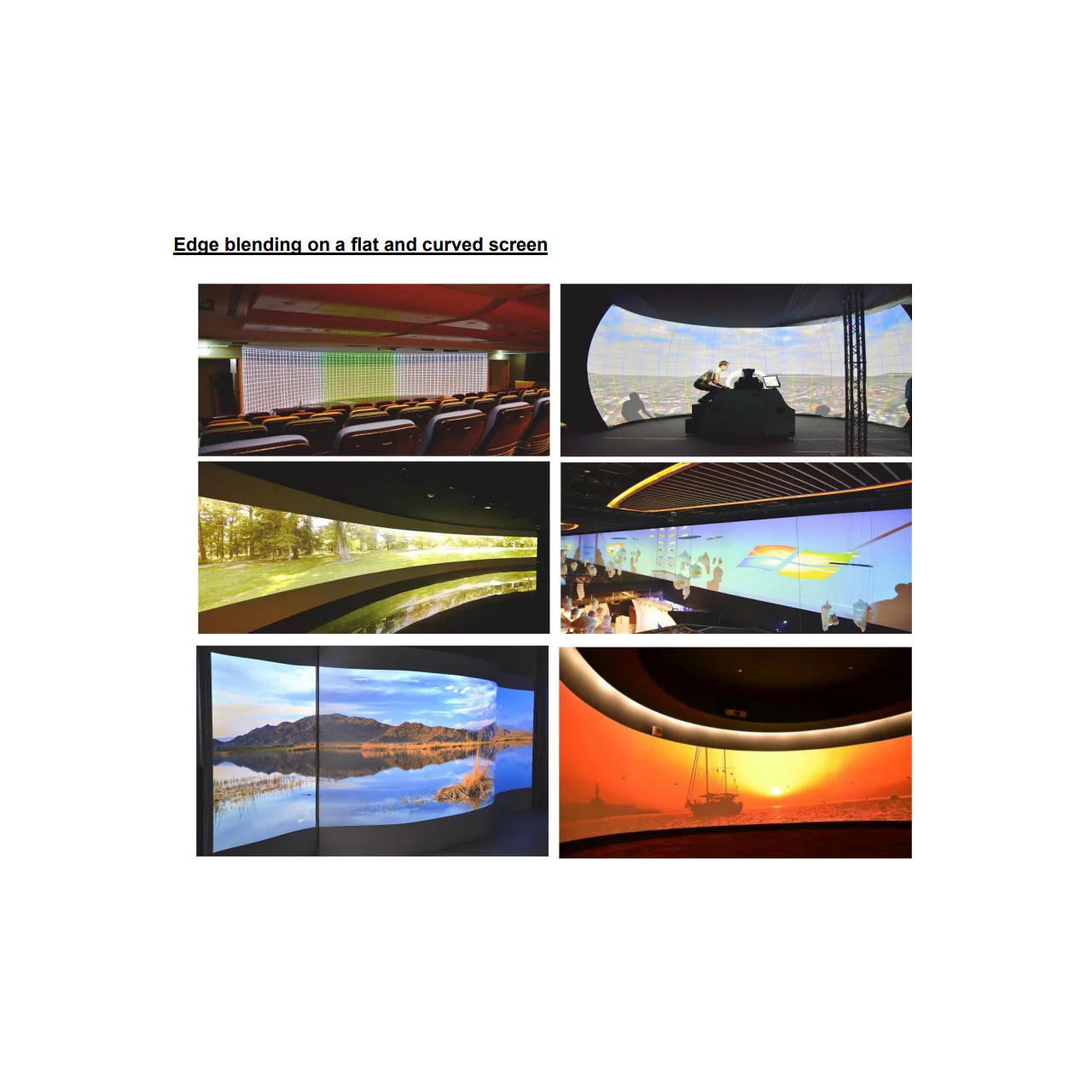

This professional-grade edge blending processor delivers seamless large-scale projection mapping across two channels. It supports high-resolution inputs up to 8K30 and 4K60 with 4:4:4 chroma sampling for exceptional visual fidelity. The integrated digital mapping function allows for precise monochrome pattern masking and intricate geometric adjustments without complex manual intervention. Featuring up to 120x68 warp control points and 10-bit processing, it ensures smooth scaling and de-interlacing. Comprehensive color correction and 9-region black level uplift compensate for projector light leakage and color variations. Built-in video wall capabilities and PIP/POP functions provide versatile display configurations for advanced AV installations.

Channels	2

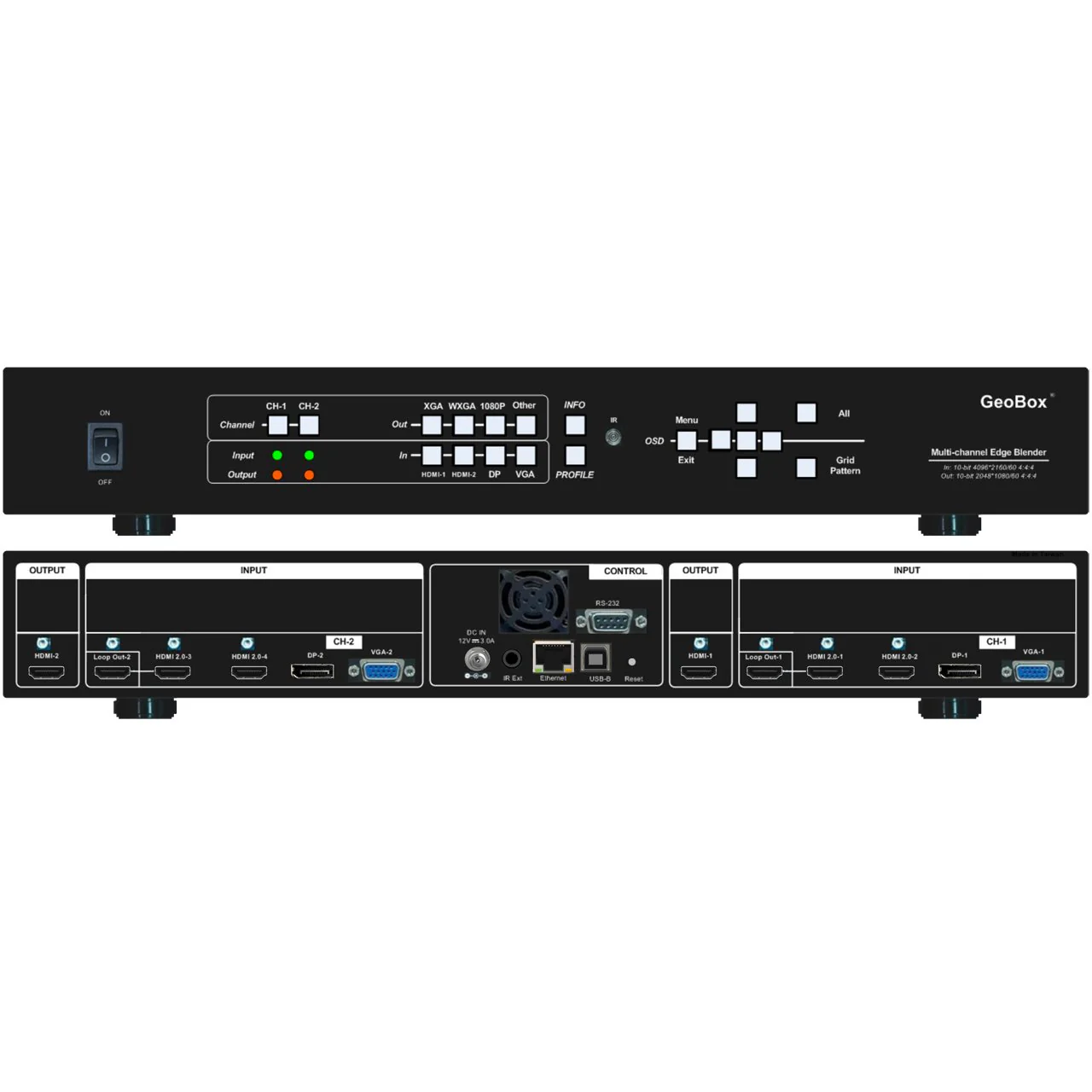

Input Ports	2x HDMI, 1x DisplayPort, 1x VGA
Output Ports	HDMI 1.4 Main Outputs, HDMI Loop-out
Max Input Resolution	7680x2160 @ 30Hz or 7680x1200 @ 60Hz
Max Output Resolution	2048x1080 @ 60Hz
Warp Control Points	Up to 120 x 68
HDCP Compliance	Input V2.2/V1.4, Output V1.4
System Latency	33ms (@60Hz)
Power Supply	DC 12V, 3.3A
Control Interfaces	Ethernet, RS232, USB, IR, Keypads
